JB's New Studio, the build thread

Thanks Stuart! Yes, very proud Now. make some money!! Special thanks to John also (I think I cant thank him enough :) ), his design was abolutely cool, and I think I did good justice on making it happen Send me your address John do you like good wine?

Send me your address John do you like good wine?

haha - I love wine but it's becoming apparent wine doesn't like me, well - the pills I'm on anyway. :)

No prob! Anything I can do for you just let me know :wink:

I just noticed that it's ready! Javier is probably way too humble to post the link to his new website that features his new studio, so I'll do it for him: :) http://www.estudiosbassino.cl/ (Click where it says "Entrar") Way to go, Javier! That's a pretty cool studio you have there. :yahoo: - Stuart -

He he. thanks Stuart! I did the website myself, so dont blame me..... :oops: Maybe I should put an english version.. dont have too many foreign customers :mrgreen:

I just hit translate and it came up in english :0 hey - $15,000/hr is a bit high don't you think? :):)

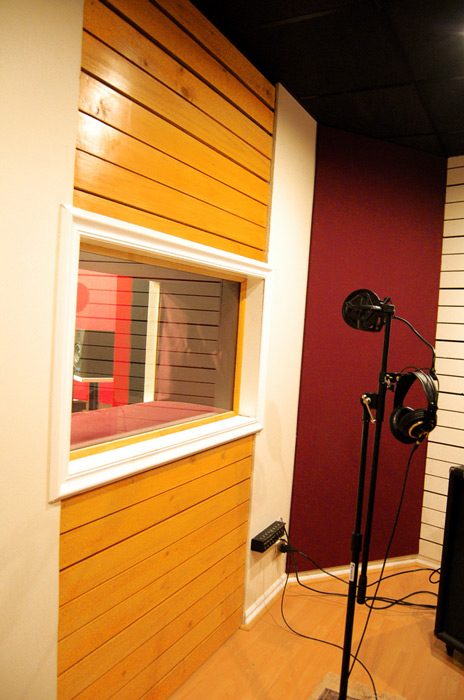

I can't believe it, I managed to fit a drumkit in my small room !! :shock: I had to record a band's demo, no big deal, so since the big drum room is not ready yet, I had to do something I used only 4 mics tho, I just put a 4 channel snake in there, why would i want more channels for vox? Drums sounded great, very bright.. too dry for my taste tho, but what more can you ask for a small room for vocals Anyway. I'll post a few pics soon Cheers

Hi there, I been following this thread for a while now and i gotta say, NICE JOB!!! the place is beautiful!! ites donal

Thanks Donal!

WHAT IS A GOBO!?

What's up with YOU ? :) a gobo is a dumb word for a nifty device: a portable absorber :) (what's up what the phrase GOBO anyway? )

What do it do i mean :P It ain't designed as regular stuff.. It first got that wool or something then some thin plywood then some air space, then the backlid. a regular is just like wool :P Need something to collect all the soundsource from my guitar amp so i don't get any reflections back so it feedsback. Only the direct sound. Recording Vocals to.

Generally Gobos have two sides, one absorptive and one reflective so you can turn it arround

Generally Gobos have two sides, one absorptive and one reflective so you can turn it arround

Exactly. According to some sources, that's even where the name comes from. It is called a "GoBo" because it "GOes BOth" ways. In the most basic form it is just a panel of wood (plywood, MDF, etc) standing up vertically, mounted on wheels, and with a sheet of 703 on one side. When the 703 side faces your sound source, you get absorption. When the wood side faces your side source, you get refection. - Stuart -

Exactly. According to some sources, that's even where the name comes from. It is called a "GoBo" because it "GOes BOth" ways. In the most basic form it is just a panel of wood (plywood, MDF, etc) standing up vertically, mounted on wheels, and with a sheet of 703 on one side. When the 703 side faces your sound source, you get absorption. When the wood side faces your side source, you get refection. - Stuart

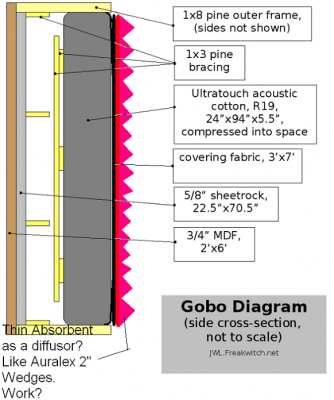

AAAH so the side with this at the right side is the absorbive side? And anyone knows what actually happens to the sound. what it does. And i guess you could make the board side of the GoBo as a Diffusor also? like only glueing/nailing on those kind of planks that they have in Diffusors onto the board?? And think it would be a good idea to glue on such Thin Absorbent like some Auraflex 2" Wedges ONTO to the Acoustic material you mainly have in the gobo? Bad explenation.. but you do see the pic i guess?

Gobo is a film term, about changing light. you place a gobo in front of a light to create "leaves in the moonlight" or a "car passing" "blinds in the window" :D www.gobotech.com.au

Wiki- A gobo (or GOBO, from "GOes Before Optics") is a physical template attached to a lighting source, used to control the shape of emitted light.

It's also a recording studio term. Wiki: "An acoustics gobo is parallel in use to a photography gobo, which is used to block direct light sources, and also shares its name with the stage lighting gobo. " "Some possible uses include the treatment of recording and mixing areas for unwanted reverb, or to separate two or more musicians so they may play in the same room at the same time whilst being miced separately." http://en.wikipedia.org/wiki/Gobo_(recording) They think it might mean "Go Between" - Stuart -

I just spent like $100us on new lights and i got a very cool vibe in my control room. I used blue and green lights placed behind the desk and some panels, also on the walls aiming and "painting" the walls. I think its very important to get a cool vibe that supports your creativity and makes you want to work in there, rather than an perfect acoustic room (well, that is important too) Maybe we should open a sticky on how to decor your studio!! PD. pics soon

LEDs?

Dichroic or however you name them in your country. Cheaper than leds for sure

Also , I've noticed a lot (maybe an expert could confirm this) that when you work with low lighting, you get a better stereo image when listening. I think something has to do with less distraction from your sight sense, and you get more focused on what you hear. Its so cool because if you mix for example, with no lights at all, you can almost "see" things along when you pan them

Hey dude, nice work!!! I recognized one of my DIY cases in your rack, hehe. Your name kinda sounded familiar, now I know why :D I am just about to start a studio DIY. Really nervous about it :lol:
