New Studio Build in Louisiana

Started by JK Recording on 21 May 2008. 100 replies, 2008–2010. In the Library under Build diaries. Key posts in this thread.

Originally posted at johnlsayers.com, topic 10633.

Shingles missing
Image not preserved: Missing Shingles.jpg
My wife worked on the front yard while I was at work!!
Image not preserved: Front Yard Piles.jpg
I have about a 80' Oak tree to deal with. I'm hoping a buddy will remove the stump for me!
Image not preserved: Large Tree Down.jpg
My neighbor across the highway had these 2 huge oaks go down, plus 5 large pine trees go down in front of his home. Fortunately they all missed his house!!! (You can see the tree roots in the distance.)
Image not preserved: Neighbors Trees.jpg
Storms like what we have this time of the year come and go at my house with mixed emotions. Worrying if it is coming our way and guilty relief when it passes us by. Gustav devastated Cuba and had politicians rethinking schedules in front of one of our Nations largest mass evacuations. Thankfully for everyone in your state it was not as severe as Katrina. I am certainly glad to read that you and your family are doing well.
Thanks...much appreciated.....winds and rain have started here for Hurricane Ike! Finished cleaning the yard Tuesday, grass cut yesterday! Now, I'm praying Hurricane Ike will blow the "Love Bugs" away!!!!
Hi guys...NO I haven't quit posting!! My job has kept me busy for too long!! I've been pecking away, a few hours here and there, but nothing worth mentioning. I took this week off to try and complete the outside of the studio's patio area. Jimmy B., piano player extrordinaire, and a friend of mine, came and helped me put up the long ceiling pieces. Probably tomorrow, (he's doing the prep work) I will give him a day installing wood flooring. (Laminate) I'm hoping another friend comes through this week with a metal break so I can install the final few pieces, and then it will be on to the inside!!! A few pictures of the vinyl installation to follow soon. I also must mention my Brother-in-law Chris and his son Michael who have helped several days too, and as always my bride of 28 years, Kelly, who's support has made this dream possible.
Looking good James, hope all the repairs went well. Hear the working bit keeping you away. In times like these, it's good to be working. Looking forward to new updates. W
Well guys...finally a little time for a couple pics. This shows the before and after on the Vinyl job on the patio. All the outside vinyl work is FINALLY complete!! Starting isolation work on the inside!
Image not preserved: Attic sound barrier.jpg
Image not preserved: Vinyl Siding.jpg
Image not preserved: Stripped ready for vinyl.jpg
I plan to add fiberglass insulation between the rafters, then 2 layers of 5/8 sheet rock as my outer leaf in the attic. My concern is the top of the walls, above the top plate. My outer leaf at that point will be the fiberglass and 2 layers of sheet rock. I have to leave an air gap to allow air to flow through the pink rafter mate. Is this acceptable?? If not what are my alternatives?
Image not preserved: Rafter Mate Top Plate.jpg

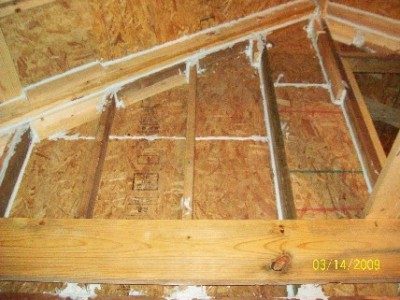

Finished sealing off the attic barrier wall. I can see no light on the backside of this wall. Next will come fiberglass insulation, and 2 layers of 5/8 sheetrock.
Sealed Attiic Sound barrier wall.jpg
Sealed Attiic Sound barrier wall.jpg

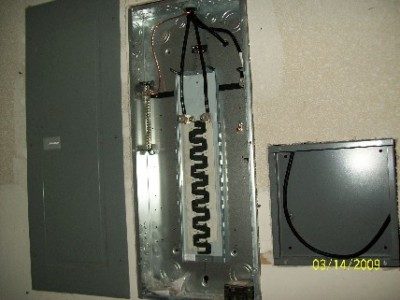

Here are my electric panels. Left to right: Existing house panel New Studio Isolated power panel "Star" Grounding panel. This has a single cable that will run to a dedicated ground rod outside.
Electric Panels.jpg
Electric Panels.jpg
Sorry it's been a while since I posted guys...I'm still chipping away at my build!! Here's a few pics of the latest work.

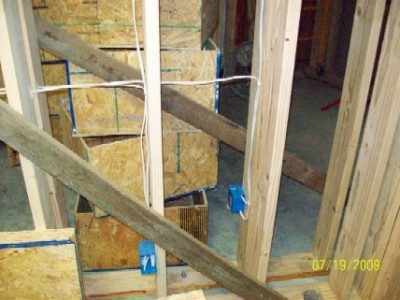

Wall Outlets.jpg
Wall Outlets.jpg

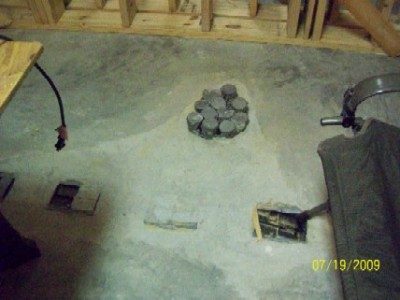

Under desk outlets and audio conduit ganged together!
Floor outlets audio conduit.jpg
Floor outlets audio conduit.jpg

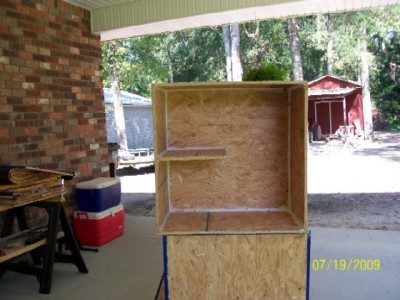

A/C Silencers
Silencer caulked.jpg
Silencer caulked.jpg

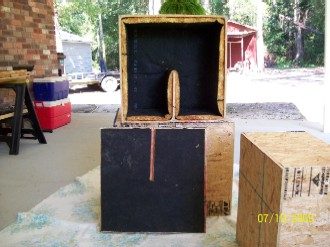

This one Insulated
Silncer insulated.jpg
Silncer insulated.jpg

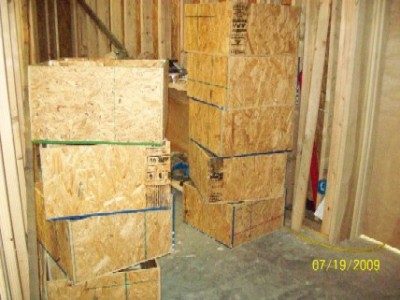

9 more to insulate!!
9 Silencers left to insulate.jpg
9 Silencers left to insulate.jpg

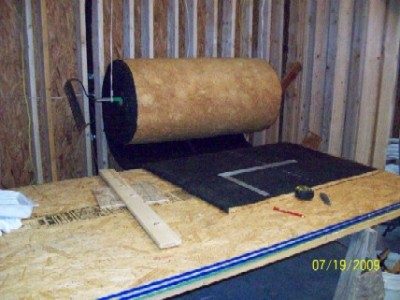

Duct insulation cutting station
Hanging Duct Insulation.jpg
Hanging Duct Insulation.jpg

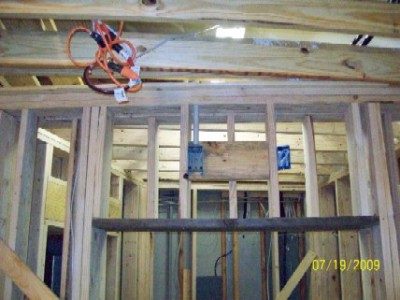

Wide screen monitor location
Wide screen monitor location.jpg
Wide screen monitor location.jpg

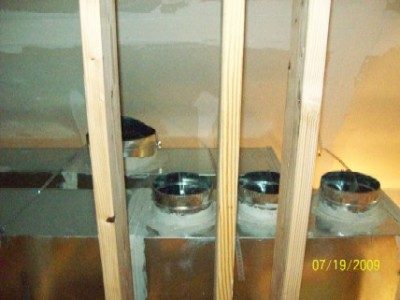

3 supplies, and one return for the live room
Live Room supply-return.jpg
Live Room supply-return.jpg

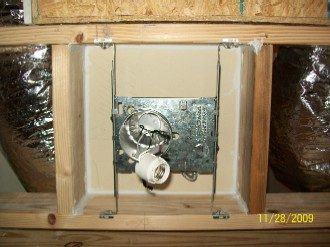

I'm still here!!! Sorry for the delay in posting. I'm still plugging away at my build. I'm determined to do it right to the best of my ability no matter how long it takes! Here's a few pictures: Light can iso box. Framed with 2 x 6, capped with 2 layers of 5/8 sheet rock, sealed with caulk.
Light can iso box.jpg
Light can iso box.jpg

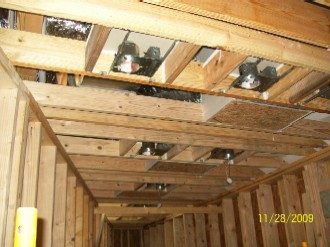

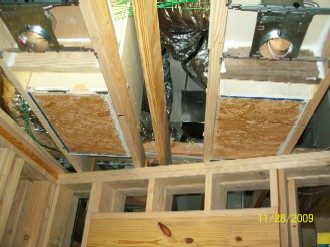

Here are some more pictures of what I've been up to when I've gotten a little spare time!!
Live Room lites and silencers.jpg
Live Room lites and silencers.jpg

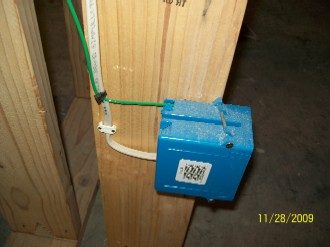

Outlet wSTAR grnd wire.jpg
Outlet wSTAR grnd wire.jpg
VB lite adn silencers.jpg
VB lite adn silencers.jpg
STOP THE NOISE.jpg
STOP THE NOISE.jpg
Racoon waiting.jpg
Racoon waiting.jpg
Newest Family addition.jpg
Newest Family addition.jpg
Wow thats just amazing! and the studio is looking good too! your neat framing is putting me too shame.
Thanks so much...beleive me I had help!!!
A few more pics of my slow progress

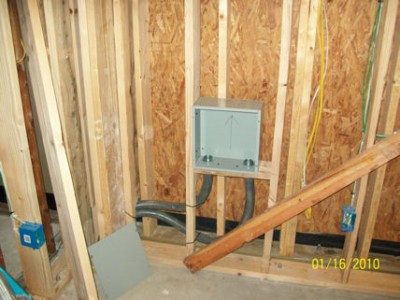

12x12 vb box.jpg
12x12 vb box.jpg

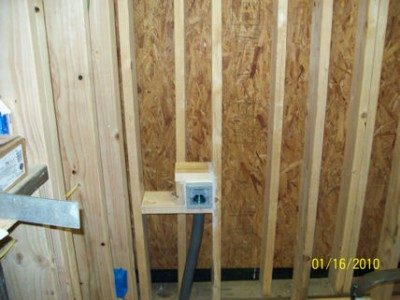

4x4 audio box.jpg
4x4 audio box.jpg
trying to sleep.jpg
trying to sleep.jpg

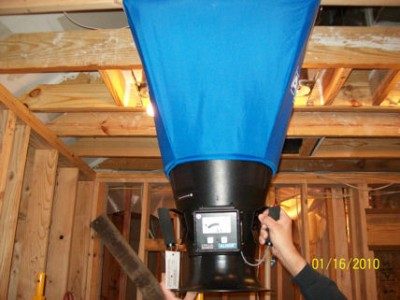

HVAC flow testing.jpg
HVAC flow testing.jpg
